A Defense Expert Explains How Far Iran’s Ballistic Missiles Can Reach, and What Iran Can and Can’t Hit

by | Mar 25, 2026 | Quick Facts

Iran launched two missiles, possibly modified versions of this Khorramshahr ballistic missile, at the island of Diego Garcia. Photo: Iranian Defense Ministry

A Defense Expert Explains How Far Iran’s Ballistic Missiles Can Reach, and What Iran Can and Can’t Hit

by | Mar 25, 2026 | Quick Facts

Iran launched two missiles, possibly modified versions of this Khorramshahr ballistic missile, at the island of Diego Garcia. Photo: Iranian Defense Ministry

While Iran’s long-range attack on Diego Garcia caught the world off guard, it was likely intended more for its psychological and political effects than for posing a real military threat.

Republished with permission from The Conversation, by Iain Boyd, University of Colorado Boulder

Iran fired two ballistic missiles on March 20, 2026, at the Indian Ocean island of Diego Garcia, which hosts a strategically important joint U.S.-U.K. military base, according to U.S., U.K. and Israeli officials. One missile broke apart during flight, and the other appears to have been destroyed by U.S. missile defenses.

Iran has denied responsibility for the launches.

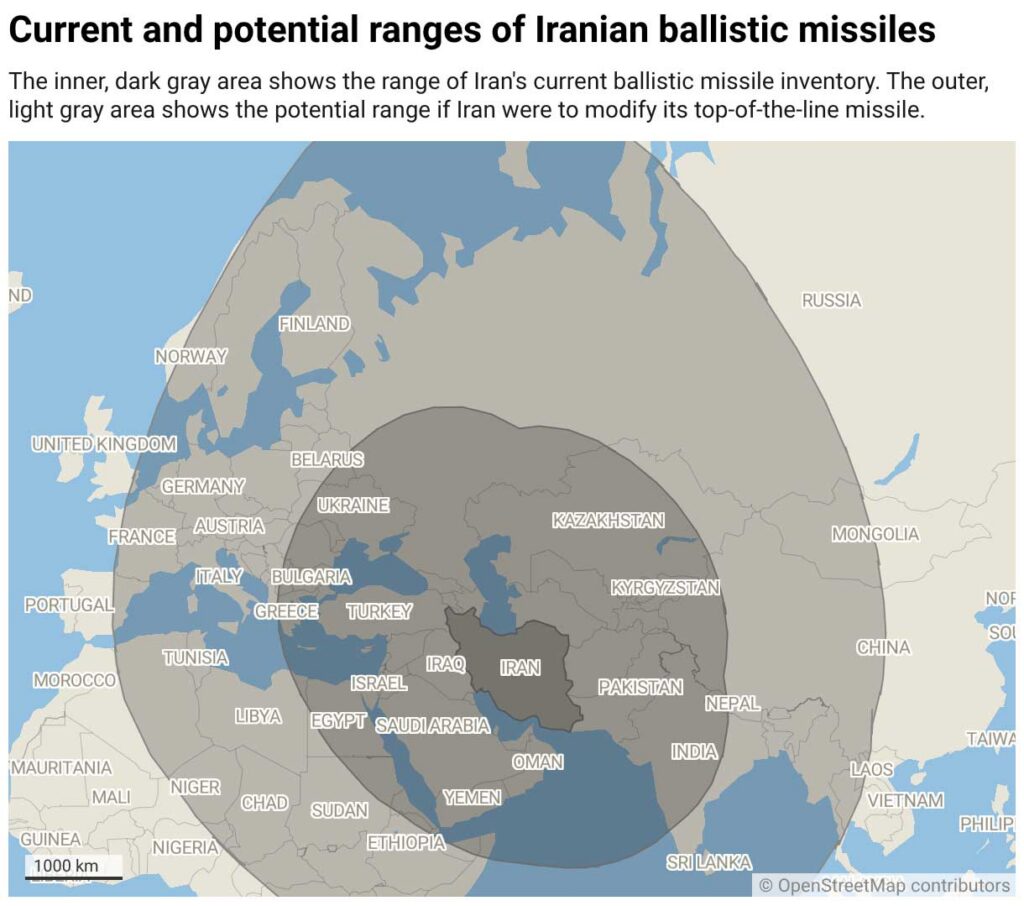

Diego Garcia is about 2,500 miles (4,000 kilometers) from Iran, which is about twice as far as the top range Iran has declared that its ballistic missiles have. Parts of Western Europe, Asia and Africa lie within a 2,500-mile (4,000-km) radius of Iran, raising concerns about the vulnerability of these areas.

However, there’s no evidence that Iran has developed a new type of missile or that it can otherwise hit targets at the longer range. Iran most likely modified an existing type of missile, but increasing a missile’s range poses significant challenges.

Map: The Conversation CC-BY-ND

Ballistic Missile Basics

A ballistic missile is launched on a rocket and, after separating from it, subsequently flies mostly under the influence of gravity to its destination. The name refers to the characteristic arc of projectiles whose trajectories are largely shaped by gravity. The range of these missiles is determined by the size of the rocket.

Short-range ballistic missiles can fly about 300 to 600 miles (500 to 1,000 km) and can be launched from mobile trucks. They are used for destroying key defensive infrastructure such as radars.

Medium-range ballistic missiles have ranges of about 600 to 1,800 miles (1,000 to 3,000 km). They are used to attack more strategic targets such as command and control centers where military leaders coordinate operations. Intermediate-range ballistic missiles operate over about 1,800 to 3,400 miles (3,000 to 5,500 km), putting much larger geographical regions at risk.

Intercontinental ballistic missiles, or ICBMs, have a range of about 3,100 to 6,200 miles (5,000 to 10,000 km), making it possible to strike targets over an enormous area. These very long-range weapons require multiple rocket stages. They fly very high, exiting the atmosphere and entering into space, before arcing back toward Earth.

At the height of the Cold War, both the Soviet Union and the United States had thousands of ICBMs armed with nuclear warheads aimed at each other. Each weapon could obliterate an entire city, and nuclear-armed ICBMs have been the basis of mutually assured destruction in which both sides were deterred from ever using the missiles.

Iran’s Inventory

Iran has an extensive ballistic missile program. The country has been developing a number of short-range ballistic missiles for many years. The suite of weapons includes the Fateh, Shahab-2 and Zolfaghar systems.

The ranges of these missiles—up to 500 miles (800 km)—are insufficient for Iran to use them against Israel directly because the closest distance between the two countries is about 550 miles (900 km). However, Iranian-backed militias have deployed these weapons in neighboring countries, such as Lebanon and Syria, and have launched them from there in attacks against Israel.

Iran has also developed intermediate-range ballistic missiles such as the Shahab-3, Sejjil and Khorramshahr weapons. These missiles have ranges of up to 1,250 miles (2,000 km), which means they can reach Israel directly from Iran.

Harder to Go Farther

Scaling up from short range to medium range to intermediate requires larger and larger rockets, which presents a number of increasingly difficult technical challenges. Larger rockets create more dynamic vibrations that the missile structure and all its components must survive. This requires an advanced manufacturing and testing infrastructure.

The size of the rocket also determines how much payload the missile can deliver. This challenge is very well-illustrated by the enormous Saturn V rocket that took astronauts to the Moon. Of the total launch mass, less than 2% was delivered to the lunar surface, with propellant taking up almost all the remaining mass.

ICBMs also have a small payload mass, and this in part explains why militaries more often load them with nuclear warheads than conventional chemical explosives. Pound for pound, nuclear warheads produce much larger effects. It is usually not worth the very high cost of sending an ICBM many thousands of miles just to blow up a single building.

Finally, maintaining control of the missile and hitting a target with sufficient accuracy becomes increasingly more difficult as range is extended. Missile navigation systems based on gyroscopes have slight errors that increase with time, and GPS-guided missiles can be jammed.

Limits on Iran’s Reach

Having successfully launched satellites into space using two-stage rockets, however, perhaps it is not too surprising that Iran has been able to build on those successes to achieve longer ranges for its missiles. The simplest modification to extend a missile’s range is to reduce its payload.

Iran has reportedly demonstrated this with the Khorramshahr, using a smaller warhead that gives it a range of 1,800 miles (3,000 km). Some observers suggest that the missiles Iran fired at Diego Garcia most likely were further-modified Khorramshahrs.

One of the Iranian missiles fired at Diego Garcia was possibly shot down by a missile fired from a U.S. Navy ship like this Arleigh Burke-class guided missile destroyer. U.S. Navy Photo by Fire Controlman 2nd Class Kristopher G. Horton

One of the Iranian missiles fired at Diego Garcia was possibly shot down by a missile fired from a U.S. Navy ship like this Arleigh Burke-class guided missile destroyer. U.S. Navy Photo by Fire Controlman 2nd Class Kristopher G. Horton

In the Iranian attack on Diego Garcia, however, one of the missiles failed in flight and the other appeared to have been destroyed by U.S. defenses. The missile failure may indicate that Iran is attempting to operate these systems at distances they are not reliably capable of.

The apparent ability of the U.S. to defend against the second missile suggests that the Iranian intermediate range ballistic missiles do not pose a significant military threat. This conclusion is further supported by the earlier high-volume attack by Iran in December 2025 when it launched hundreds of missiles and drones in a concerted raid against Israel. Almost all were shot down by a combination of Israeli and U.S. defenses.

Surprising but Not So Threatening

Ultimately, while Iran’s long-range attack on Diego Garcia caught the world off guard, it was likely intended more for its psychological and political effects than for posing a real military threat.

It is worth noting that an additional challenge with fielding intermediate-range ballistic missiles is the cost, which scales with the size of the rocket required. A two-stage rocket that can fly 2,500 miles (4,000 km) is probably one of the most expensive weapons that Iran possesses: It is therefore unlikely to have many of them. When launched in small salvos, these missiles are highly susceptible to the sophisticated air defense systems of the U.S. and its allies.

Still, the attack has certainly gotten the attention of the world and may increase pressure for diplomatic approaches to end the conflict with Iran quickly.The Conversation

Iain Boyd, Director of the Center for National Security Initiatives and Professor of Aerospace Engineering Sciences, University of Colorado Boulder

This article is republished from The Conversation under a Creative Commons license. Read the original article.
